Customized
KAXITE
FRP Gelcoat Panel is a high-performance thermosetting composite plastic building material, which takes unsaturated polyester resin or epoxy resin as the matrix, combined with alkali-free glass fiber as the reinforcing material, and is covered with a dense layer of special gelcoat resin on the surface. Formed by integral curing through special processes, it is the preferred solution for corrosion resistance, weather resistance and aesthetics in industrial and civil construction fields.

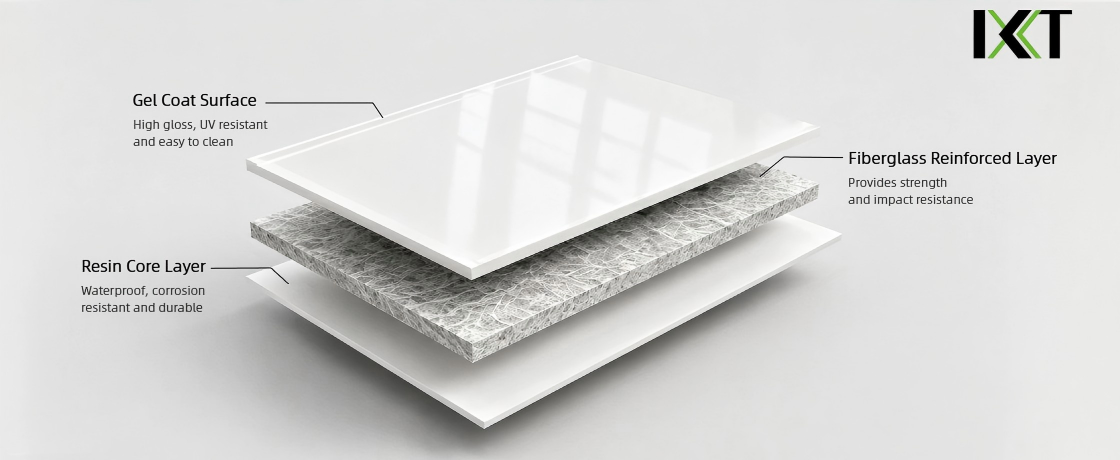

The product features a three-layer composite structural design.
The surface has a 0.3-0.8mm high-gloss gelcoat layer for strong protection.
The gelcoat layer isolates corrosion, UV rays and moisture and prevents glass fiber exposure.
The middle glass fiber reinforced layer provides excellent mechanical performance.
Its flexural strength exceeds 180MPa, three times that of ordinary PVC panels.
It weighs only one quarter of steel, easy for transportation and on-site installation.
The optional bottom layer enhances fire safety to meet diverse application requirements.
Designed for excellent impact resistance and long-term durability.
Lightweight structure helps reduce load and improve efficiency.
Provides reliable protection against water and moisture damage.
Resists sunlight exposure while keeping color stable over time.
Easy to cut, drill, bond and install for faster projects.

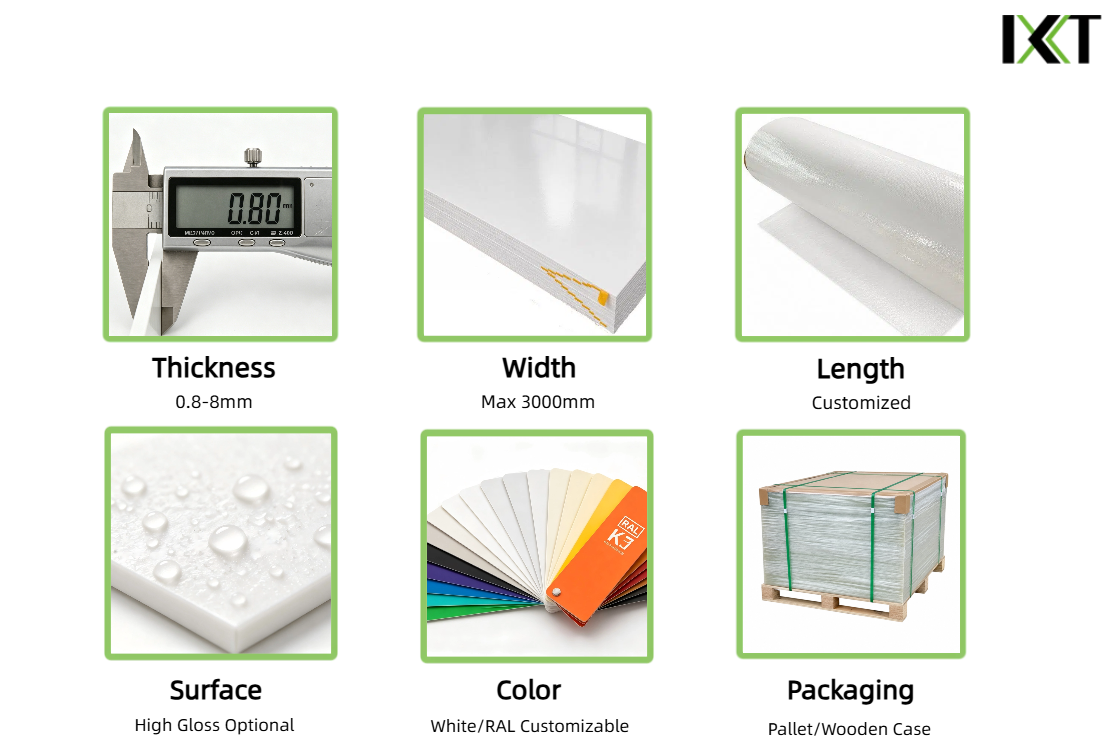

Our FRP Gelcoat Panels support customized size, color and functions. Non-standard dimensions and various colors are available on demand, and special performance such as flame retardant can be customized. Adhering to the service tenet of customer first, we tailor professional solutions to match all application scenarios.

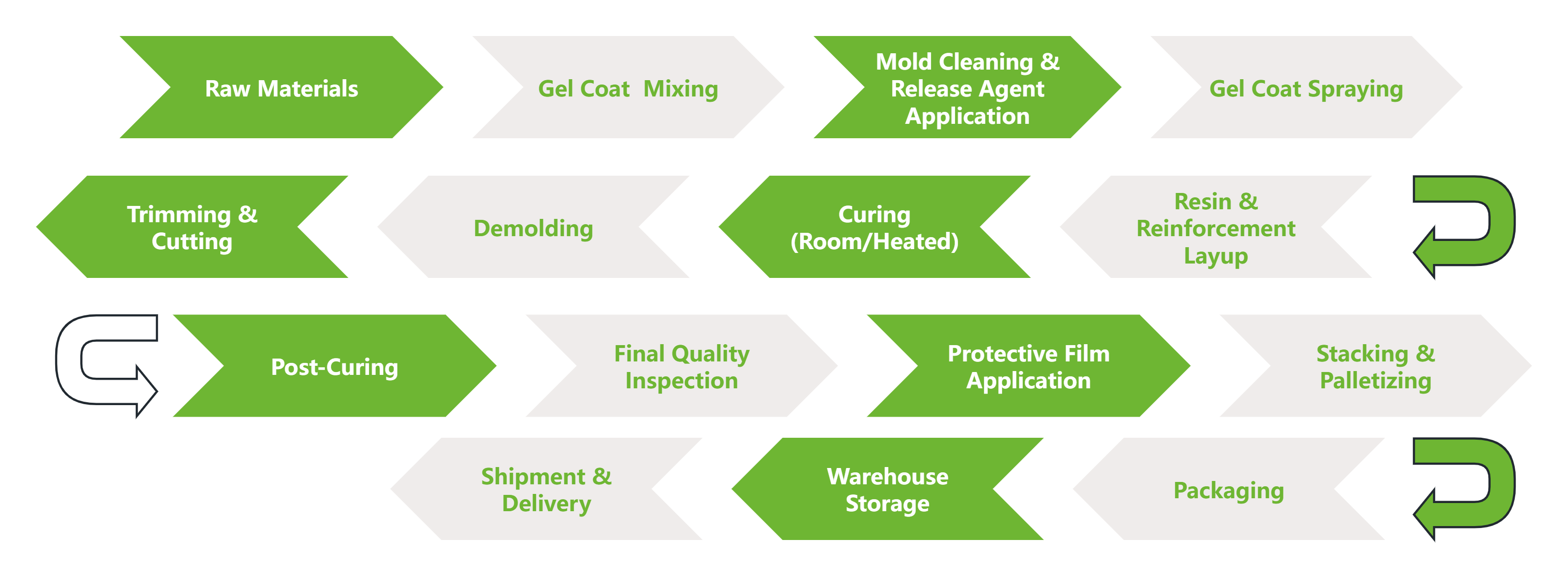

We follow a fully controlled, step-by-step production workflow to ensure consistent quality and reliable performance in every product we deliver.
Raw Materials & Gel Coat Preparation: We start with high-quality raw materials, carefully mixing the gel coat to ensure optimal surface finish.
Mold Preparation & Coating: The mold is thoroughly cleaned and treated with release agent before the gel coat is evenly sprayed, creating a smooth, durable outer layer.
Resin Layup & Curing: Resin and reinforcement materials are layered precisely, followed by controlled curing (at room temperature or under heating) to form a strong, stable structure.
Demolding & Finishing: After curing, parts are carefully demolded, then trimmed and cut to meet exact specifications.
Post-Curing & Quality Control: A post-curing process further enhances material stability, followed by a rigorous final quality inspection to verify every detail meets our standards.
Protection & Packaging: Products are protected with a protective film, stacked and palletized, then securely packaged for warehouse storage and safe shipment to your location.
Versatile Applications Across Industries

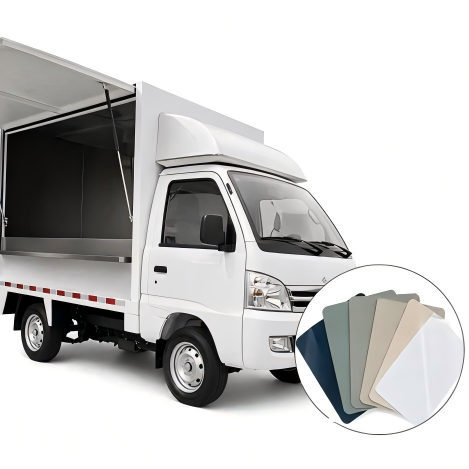

Our high-performance panels are engineered to meet the diverse demands of multiple sectors, offering durability, light weight, and weather resistance for a wide range of projects.Refrigerated Truck Bodies: Ideal for cold chain logistics, providing excellent thermal insulation and impact resistance to keep goods at optimal temperatures during transit.
RVs & Campers: The lightweight yet robust material helps reduce vehicle weight while ensuring a comfortable, weatherproof living space for road trips and outdoor adventures.
Container Houses & Lining: Perfect for modular construction, offering a smooth, durable interior lining and exterior cladding that protects against moisture, corrosion, and extreme weather.
Building Wall Cladding: Delivers a sleek, modern finish for commercial and residential buildings, combining aesthetic appeal with long-lasting protection against the elements.
Glamping Pods: Creates stylish, weather-resistant structures for luxury outdoor accommodations, balancing comfort, durability, and visual appeal.
