Features:
KXT-SOLAR02
KAXITE
5675

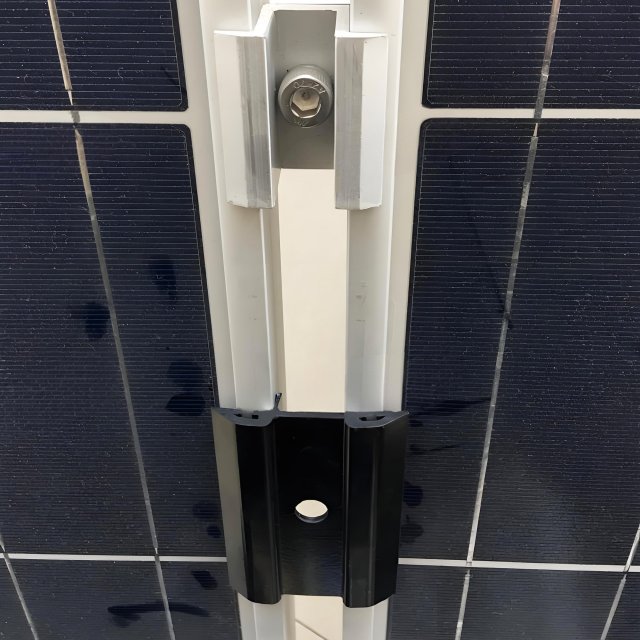

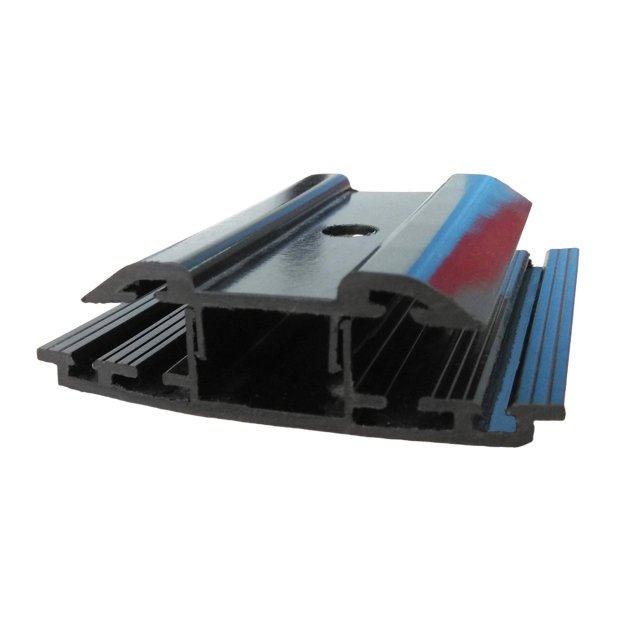

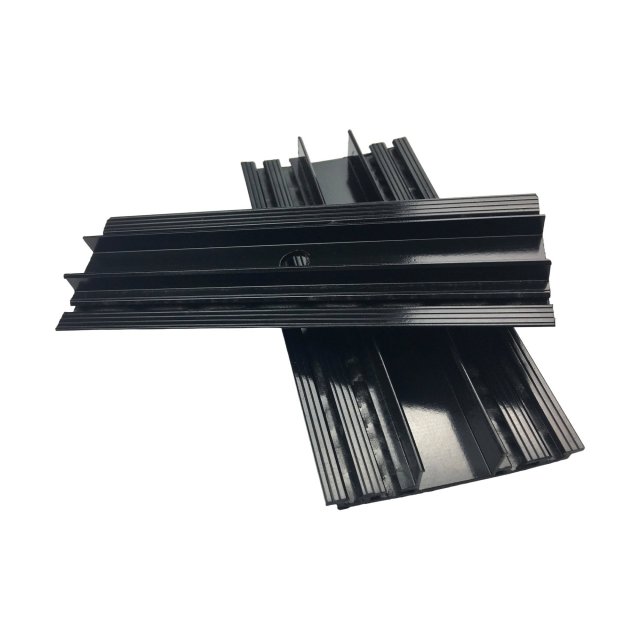

The glass-fiber reinforced PA66 solar clamps provide a non-conductive, corrosion-proof solution for frameless PV panel installations, eliminating the risk of electrical leakage caused by traditional aluminum clamps. Unlike metal clamps with rubber inserts (which degrade over time, exposing bare aluminum to panels), our all-polymer design ensures permanent insulation while maintaining superior UV and weather resistance for 25+ years.
Key Benefits:
✔ Zero Electrical Conductivity – Prevents panel short-circuiting and grounding issues
✔ Chemical & UV Resistance – Withstands extreme temperatures (-40°C to 120°C)
✔ Lightweight & Strong – 40% lighter than aluminum, yet supports 50kg+ per clamp

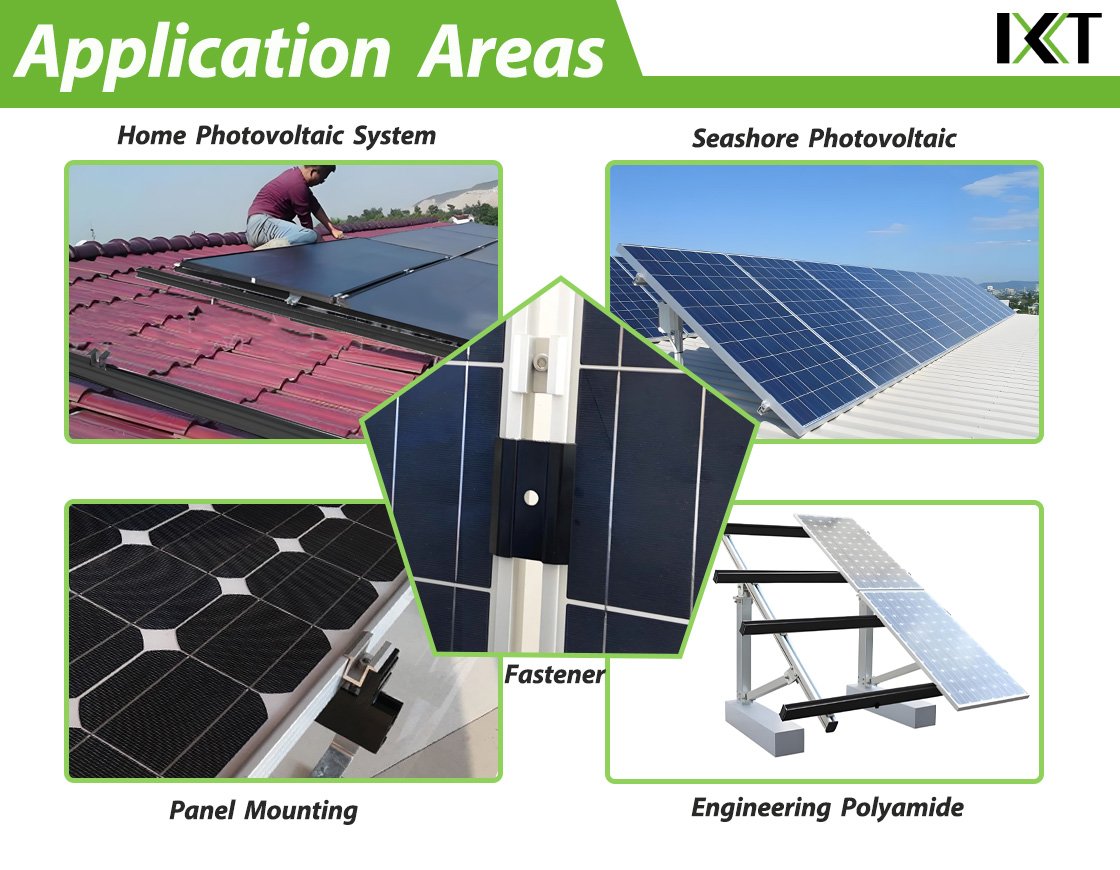

Perfect for: Commercial rooftops, solar farms, and harsh environments (like off-shore projects) where safety and longevity are critical.
Product Information | |
Material | PA66 GF40 |
Specification | Customized |
Application | Home/Indurstrial/ Solar Panel Mounting |
Warranty | 3 Years |
Sample | Available |
Delivery Date | 5-15 Days After Payment Received |
Type | Solar Clamp |
Duration | More Than 20 Years |
Packaging | Accept Any Customized Package |
Shipping term | By Express, By Air, By Sea Are Available |
Payment term | T/T, Western Union, Paypal |
Certification | SGS,ROSH,ISO9001:2008,TUV |
Size | Accept Any Customized Size |
MOQ | We Accept Small Trial Order |

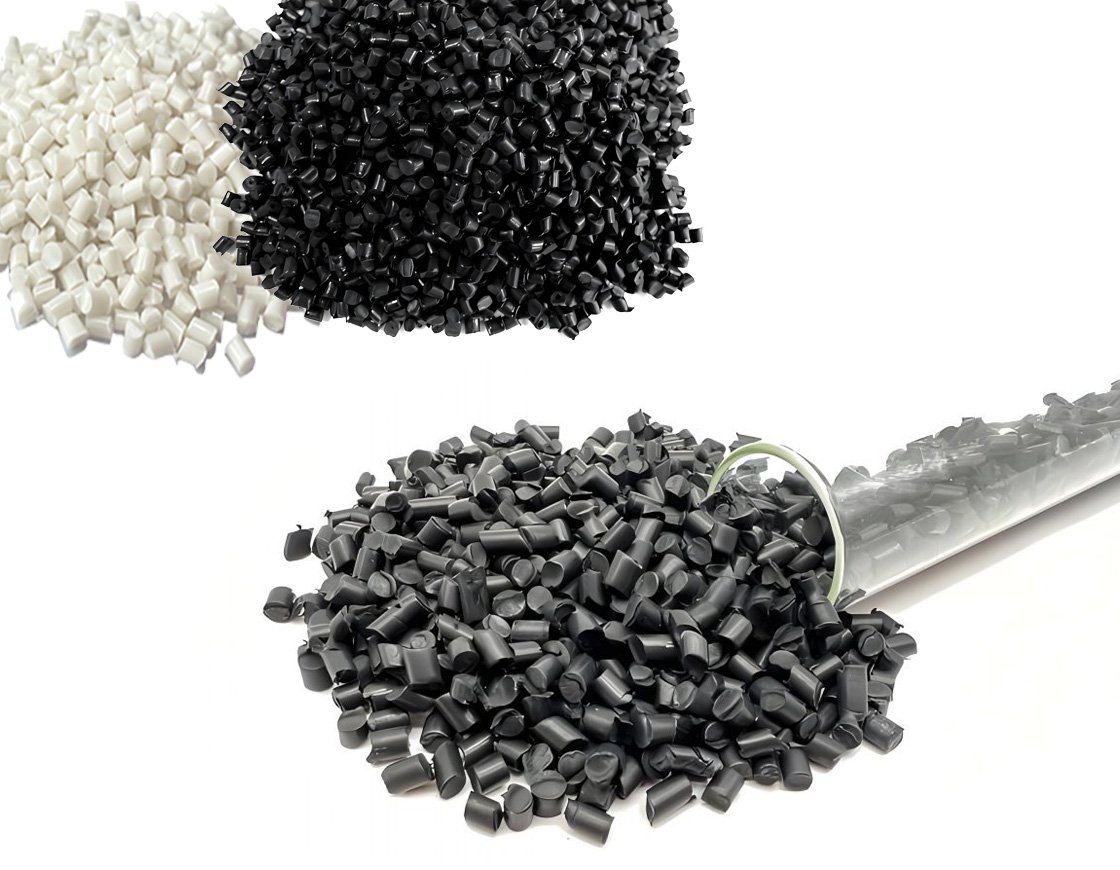

We granuled by ourselves to ensure the quality of raw material for PA66GF polyamide profiles.
The performance of polyamide profiles complies with the Chinese standard GB/T 23615.1-2017 and the European standard EN 14024:2004. For the KAXITE series, the performance exceeds the standard requirements.
| KAXITE PA66 Solar Profiles Performance | |||
| No. | Item | Unit | Sample test |
| 1 | Ash(fiberglass) | % | 40 |
| 2 | Appearance Quality | Smooth and no defects | |
| 3 | Density | g/cm3 | 1.5 |
| 4 | Linear expansion coefficient | K-1 | 2.9 |
| 5 | Vicat softening temperature | ℃ | 245 |
| 6 | Deformation temperature for loading 0.45MPa | ℃ | 255 |
| 7 | Shore hardness | D | 89 |
| 8 | Unnothed impact strength | KJ/m² | 84 |
| 9 | Elastic modulus | Mpa | 5500 |
| 10 | Elongation at break | % | 3.2 |
| 11 | Transverse tensile strength in room temperature | Mpa | 101 |
| 12 | Transverse tensile strength in high temperature | Mpa | 62 |
| 13 | Water resistance Test (Transverse tensile strength) | Mpa | 72 |
| 14 | Heat aging test (Transverse tensile strength) | Mpa | 97 |
| Notes: | 1) Sample water content less than 0.2% by weight | ||
| 2) Fast conditioning [EN ISO 1110] | |||
| 3) Method 1fU | |||
| 4) Standard small specimen [50mm * 6mm * wall thickness] | |||
KAXITE operates its own laboratory to rigorously test and ensure quality control. With advanced granulation capabilities, KAXITE can accommodate diverse performance requirements and material specifications, enabling the customization of products to meet specific client needs.
 |  |  |  |
| Dimension Measurement | CNC Specimen | Sampling | Glass Fiber Content |
 |  |  |  |
| Shore Hardness D | Impact Strength | Tensile Strength/Modulus | Elongation at Break |
 |  |  |  |
| Melting Temp. / DSC | High Temp. Test | Low Temp. Test | Flammability (UL94) |
KAXITE operates over 40 extrusion lines dedicated to producing a wide range of plastic profiles. Our production process is supported by a 7*24-hour laboratory testing system to ensure consistent performance monitoring. With ISO9001 certification, we maintain a high standard of production quality.
 |  |  |
The greatest challenge lies not in conceptualization but in execution. Many customers have expressed frustration when other manufacturers failed to produce the shapes they designed, prompting some to seek assistance directly from our workshop. We specialize in developing and fabricating custom dies of the PA66 thermal insulating profiles for our customers, and we have never failed to deliver on any shape requested. In most cases, we can complete the development of new products within 15 days.
Regarding product packaging, we offer standard packaging options to ensure the safe storage of PA66 profiles. Additionally, we can provide customized packaging based on specific requirements.
We are highly responsive to customer demands, leveraging our substantial annual production capacity of 20,000 tons to ensure timely delivery. Typically, we can complete product delivery within 15 days. In addition to fast delivery, we offer perfect packaging solutions tailored to customer requirements. Our packaging and transportation solutions are specialized to maximize container load rates, improve delivery efficiency, and reduce transportation time, providing our customers with optimized service for both large and small order volumes.
 |  |  |  |
