KXT-Rub
KAXITE
2mm~100mm

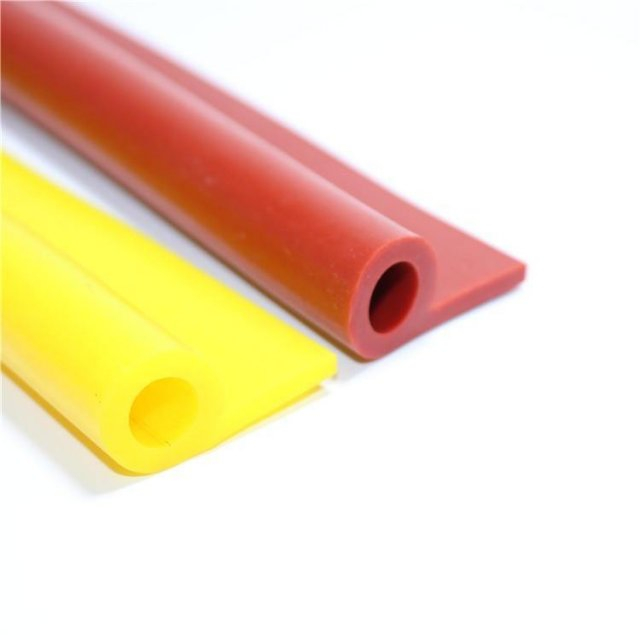

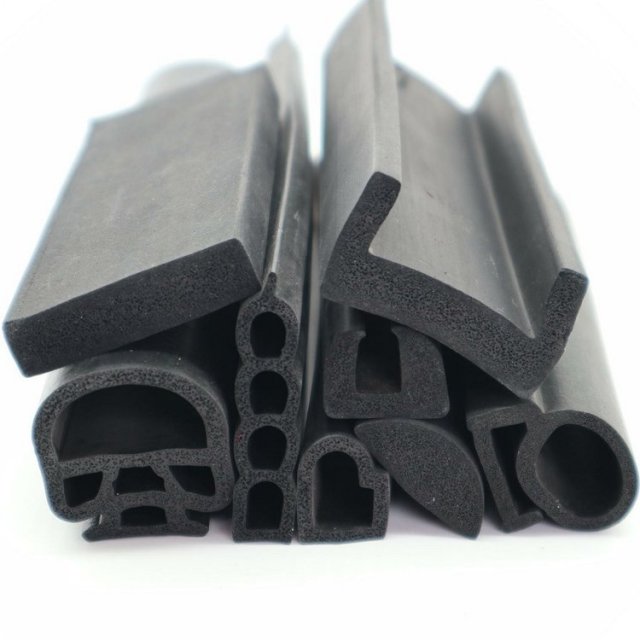

Soft extrusion PVC, TPV, EPDM, PP, Silicone, TPE, EVA, PU offering full color customization, and good sealing performance. KAXITE elevates this traditional material through innovative die design and extrusion techniques, achieving enhanced precision (±0.2mm) and heat resistanc while preserving its inherent advantages. Our engineered formulations incorporate UV stabilizers and impact modifiers for superior weatherability in demanding climates.
KAXITE operates its own laboratory to rigorously test and ensure quality control. With advanced granulation capabilities, KAXITE can accommodate diverse performance requirements and material specifications, enabling the customization of products to meet specific client needs.
Typical performance characteristics for PVC materials are as follows:
| PROPERTY | DIN METHOD | LIMIT RANGE | UNITS OF MEASUREMENT | TESTED VALUE | ||||
| Mechanical Properties | ||||||||
| Density | ISO 1183 | 1.7±0.1 | g/cm³ | 1.65 | ||||
| Tensile Strength @ Yield | ISO 527 | 40 - 57 | MPa | 55 | ||||
| Tensile Strength @ Break | ISO 527 | 30 - 80 | MPa | 30 | ||||
| Elongation @ Yield | ISO 527 | 3 - 10 | % | 3 | ||||
| Elongation @ Break | ISO 527 | 10 - 50 | % | 33 | ||||
| Tensile Modulus of Elasticity | ISO 527 | 2500 - 3000 | MPa | 3000 | ||||
| Flexural Strength | ISO 178 | 80 - 90 | MPa | 90 | ||||
| Impact Strength | ISO 179 | - | kJ/m² | No Break | ||||
| Notched Impact Strength | ISO 179 | 2 - 10 | kJ/m² | 3 | ||||
| Ball Indentation Hardness / Rockwell | ISO 2039-1 | 100 - 150 | MPa | 120 | ||||
| Hardness (Shore D) | ISO 868 | 60 - 90 | - | 80 | ||||
| PROPERTY | DIN METHOD | LIMIT RANGE | UNITS OF MEASUREMENT | TESTED VALUE | ||||
| Thermal Properties | ||||||||
| Vicat Softening Point (VST/B/50) | ISO 306 | > 70 | 。C | 115 | ||||
| Heat Deflection Temperature (HBT/B) | ISO 75 | 69 - 75 | 。C | 72 (3) | ||||
| Coefficient of Thermal Expansion | DIN 53752 | 0.6 – 0.8 | 10-4/。C | 0.8 | ||||
| Thermal Conductivity @ 20。C | DIN 52612 | 0.10 – 0.18 | W/(mK) | 0.14 | ||||
| Service Temperature – Upper Limit | - | 50 - 85 | 。C | 60 | ||||
| Without High Mech. Load – Lower Limit | - | -5 / - 40 | 。C | -15 | ||||
| Electrical Properties | ||||||||
| Volume Resistivity | VDE 0303 | 105 - 1020 | Ohm cm | 1015 | ||||
| Surface Resistivity | VDE 0303 | 105 - 1015 | Ohm | 1013 | ||||
| Dielectric Constant @ 1MHz | DIN 53483 | 1.0 – 3.0 | - | 3.0 | ||||
| Dielectric Loss Factor @ 1MHz | DIN 53483 | 0.01 | - | 0.01 | ||||
| Dielectric Strength | VDE 0303 | 20 - 40 | Kv/mm | 35 | ||||
| Tracking Resistance – IEC 60112 | DIN 53480 | KB600 | V | KB600 | ||||
 |  |  |  |
| Dimension Measurement | Sampling | Density | Glass Fiber Content |
 |  |  |  |
| Shore Hardness D | Impact Strength | Tensile Strength/Modulus | Elongation at Break |
 |  |  |  |
| Melting Temp. / DSC | High Temp. Test | Low Temp. Test | Flammability (UL94) |
KAXITE operates over 40 extrusion lines dedicated to producing a wide range of plastic profiles. Our production process is supported by a 7*24-hour laboratory testing system to ensure consistent performance monitoring. With ISO9001 certification, we maintain a high standard of production quality.
 |  |  |
The greatest challenge lies not in conceptualization but in execution. Many customers have expressed frustration when other manufacturers failed to produce the shapes they designed, prompting some to seek assistance directly from our workshop. We specialize in developing and fabricating custom dies of the PA66 thermal insulating profiles for our customers, and we have never failed to deliver on any shape requested. In most cases, we can complete the development of new products within 15 days.
Regarding product packaging, we offer standard packaging options to ensure the safe storage of plastic profiles. Additionally, we can provide customized packaging based on specific requirements. For all specifications and shapes, the standard packaging method is linear, with a standard length of 6 meters; however, customized lengths are available upon request. For shapes such as "I", "C", and other simple geometries, the products can be conveniently packaged in rolls. We strive to meet individual customer needs by providing flexible packaging solutions tailored to different product specifications.
 |  |  |  |
We are highly responsive to customer demands, leveraging our substantial annual production capacity of 20,000 tons to ensure timely delivery. Typically, we can complete product delivery within 15 days. In addition to fast delivery, we offer perfect packaging solutions tailored to customer requirements. Our packaging and transportation solutions are specialized to maximize container load rates, improve delivery efficiency, and reduce transportation time, providing our customers with optimized service for both large and small order volumes.
 |  |  |  |
